Product end of support
We have replaced this product with:
AXIS P7304
For specifications of recommended replacement product, see the datasheet.
Hardware support and RMA service expired on 2024-11-05. For information about the support policy after discontinuation date, go to General support policy after discontinuation date. Software support expired on 2024-11-05. After this date, see the product documentation and support pages for self-help resources. When the software support period has expired no further updates will be released. Software for all devices can be found on the device software download page.
note
Please note that for products that no longer receive updates, i.e. the software support date is passed, the software is no longer supported and may have known bugs and security vulnerabilities.
Device software
Software support has expired.
AXIS Q7401
-
Version 5.51.7.8 - PSS/ftp/pub/axis/software/MPQT/Q7401/5_51_7_8/Q7401_5_51_7_8.bin - Integrity checksum: 844e6b23166eabc80835743e17f2d58ea5f815155a0d8e9f587e8d0f1ddd3cae Download
PTZ drivers
for AXIS Q7401 Video EncoderVersion 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Bosch/Philips Autodome G3A

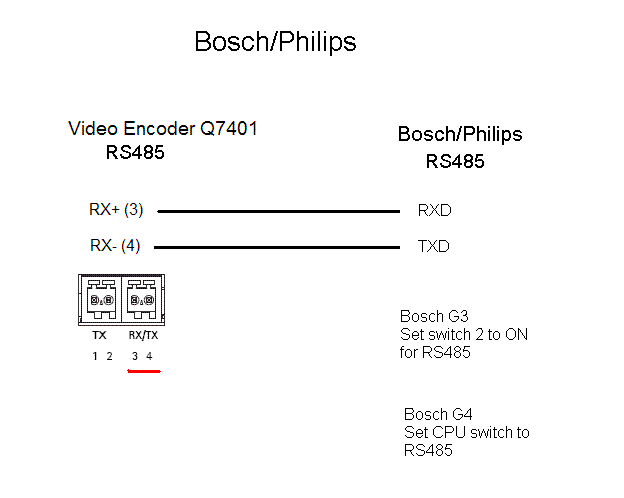

- Bosch Autodome VG4
- Bosch MIC 400
- Bosch MIC 500
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Cohu 3950 iVIEW
- Cohu ER8945
- Cohu ER8945A
Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Daiwa DMP15-H1

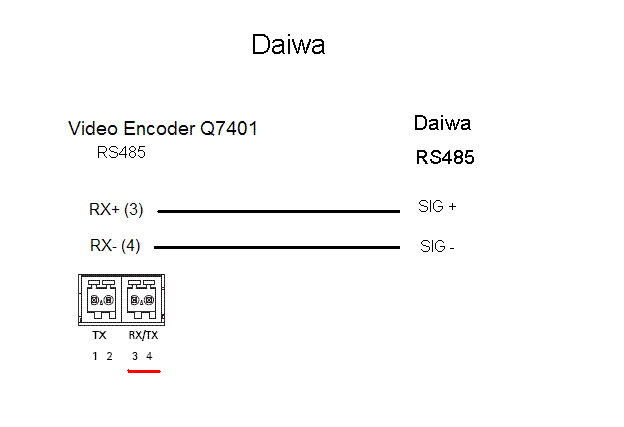

- Daiwa DMP23-H2
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Ernitec ICU-PTZ-S 51PA

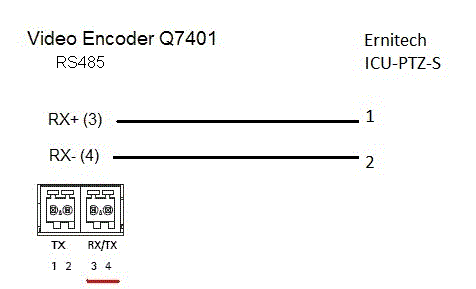

- Ernitec Orion 361-23C
Version 5.20.3Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- MIC1-400
Version 5.20.3Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- JVC TK-C676
Version 5.20.3Version 5.01Version 5.50.4.2Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Lilin PIH-717

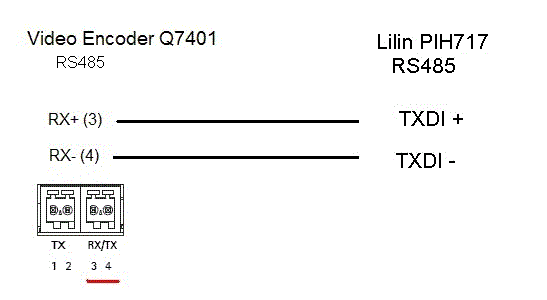

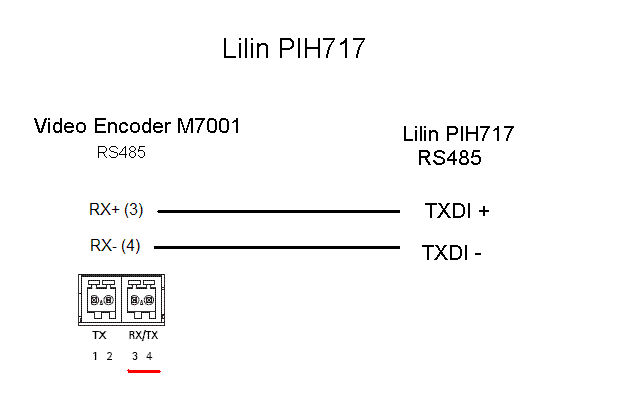

- Lilin PIH-7000
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Panasonic WV-CS850/CS854

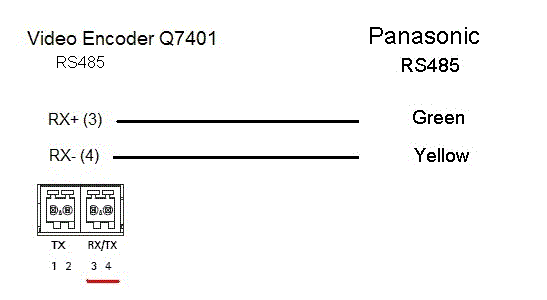

- Panasonic WV-CS850A/CS854A
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Pelco DD5-C

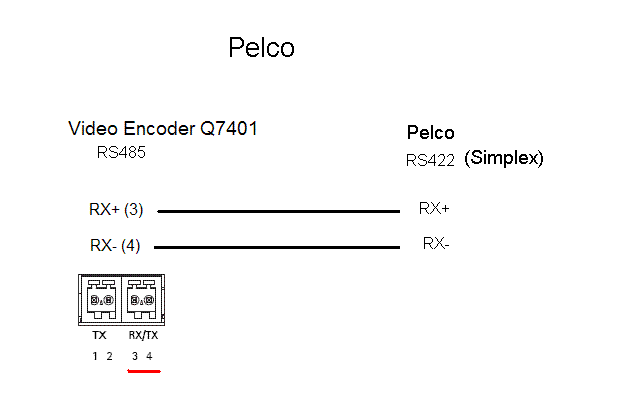

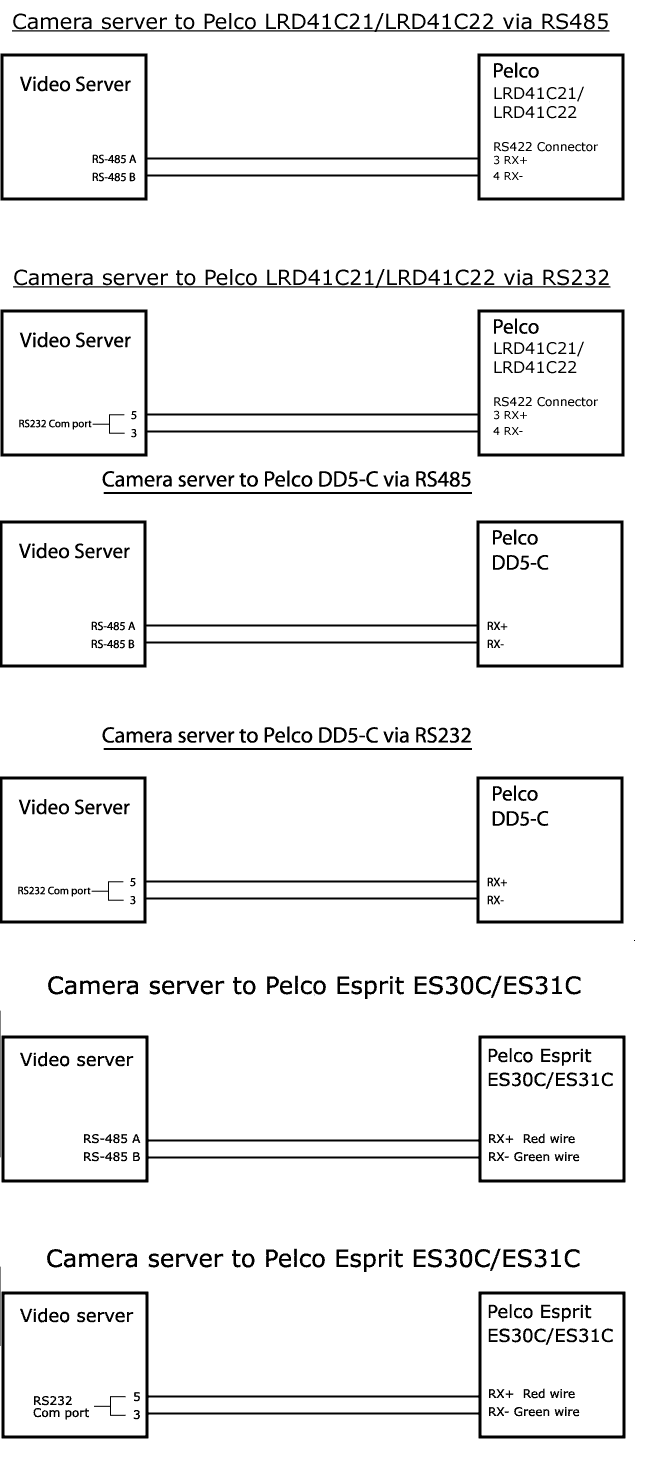

- Pelco Esprit ES30C/ES31C
- Pelco LRD41C21
- Pelco LRD41C22
- Pelco Spectra III
- Pelco Spectra IV
- Pelco Spectra Mini
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Samsung SCC-643

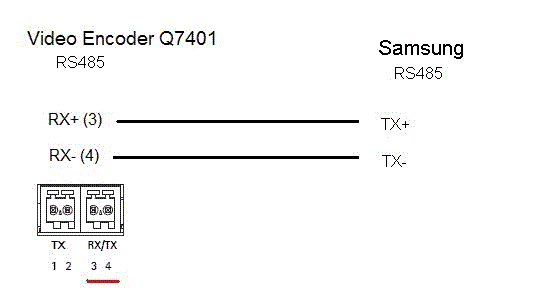

- Samsung SCP-2120
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Sensormatic Ultra I

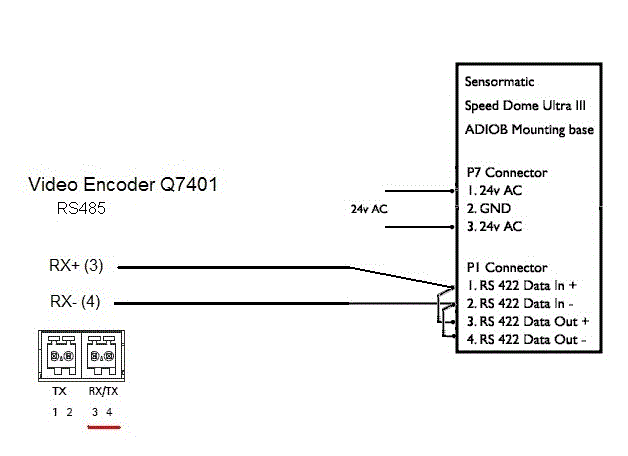

- Sensormatic Ultra II

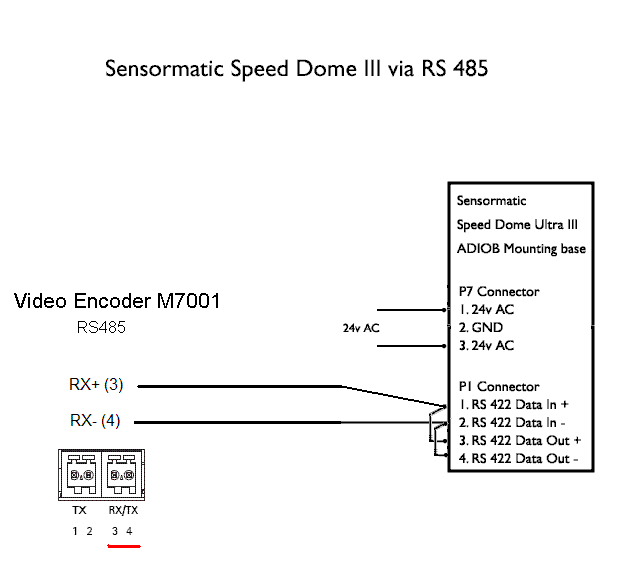

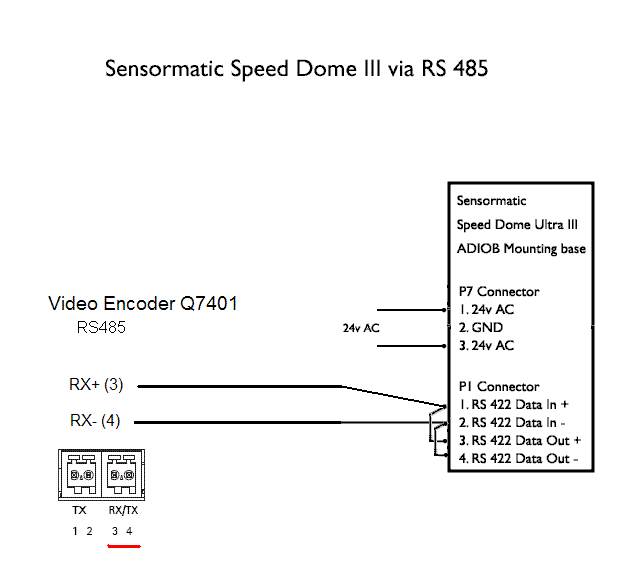

- Sensormatic Ultra III
- Sensormatic Ultra V
- Sensormatic Ultra VII
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Ultrak UltraDome KD6

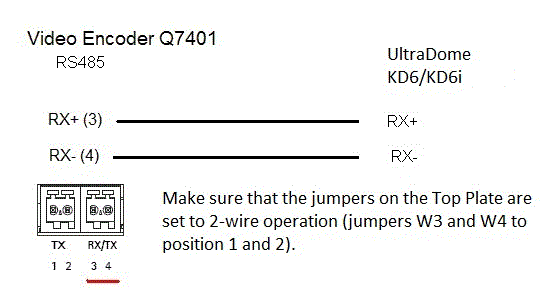

- Ultrak UltraDome KD6i
Version 5.20.3Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Teb TUB
Version 5.20.3Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Vcl Orbiter MicroSphere
- Vcl Orbiter Gold
Version 5.20.3Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Vicon SVFT-W23
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Videmech 682

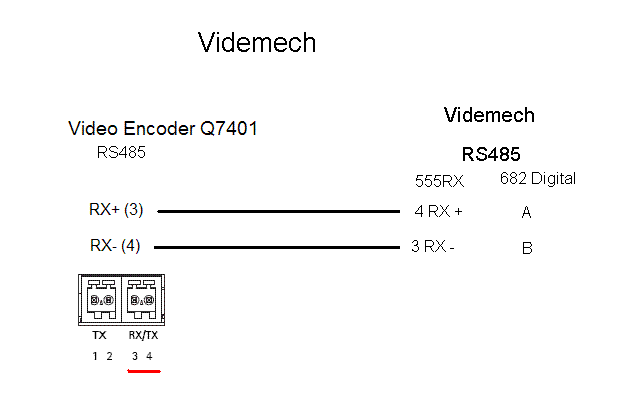

- Videmech 555RX
Version 5.20.3Version 5.20.2Version 5.01Version 5.50.4.2Older versions of this software
Version 5.50.2This is a list of models supported by this driver, the physical installation depends on the video encoder and the PTZ unit. Check what serial communication the video encoder and PTZ unit will support! Supported models:- Sony EVI-D70/D70P

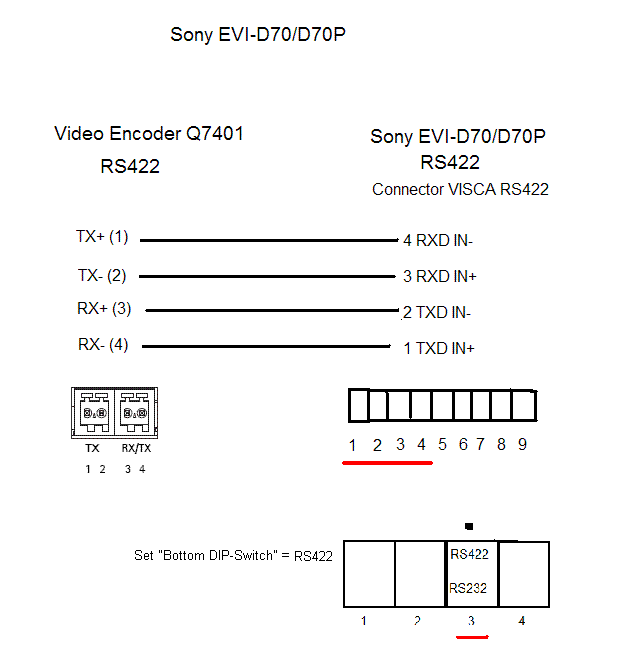

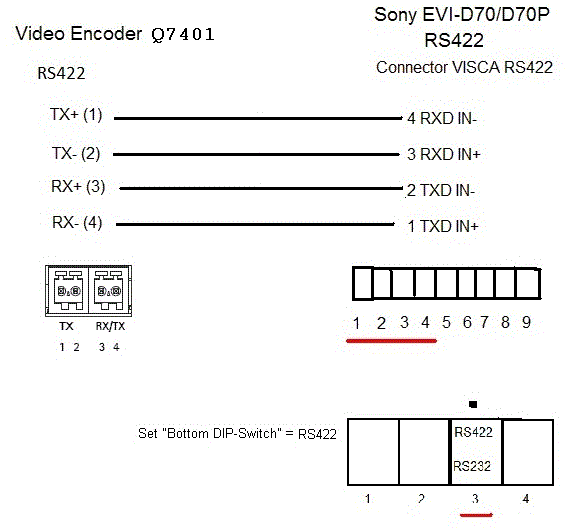

- Other Sony models may be supported if using an external RS422/RS232 converter.
Version 5.20.3Version 5.20.2Version 5.01
Older versions
for AXIS Q7401 Video Encodernote
We don't support these versions anymore. They may have known bugs and security vulnerabilities that we have corrected in later versions. We recommend that you use the supported device software.
AXIS Q7401
- Version 5.51.7.7 - PSS Integrity checksum: SHA256: 3d5c99c5dc2a78c7b37d852e145b618d1427a544109729d80895a90b234e1995
- Version 5.51.7.6 - PSS Integrity checksum: SHA256: e25b1f9fd0daa9f2f47a0c8b2072bcfada8feb1225ae185c61efdefad318f76c
- Version 5.51.7.5 - PSS Integrity checksum: SHA256: 2a17d1a1632deb0f8177a9ee1d39bbcacbb494b1b18352f6af72909d10711f66
- Version 5.51.7.4 - PSS Integrity checksum: SHA256: 955e4cd1c6364e8894721e757660f317a1d15e48001b9120488f071670cf2380
- Version 5.51.7.3 - PSS Integrity checksum: SHA256: d9d083ac9045e4247f99e0f16b4e848a6c0c041b7eb8ada1d526fe15562c4acd
- Version 5.51.7.2 - PSS Integrity checksum: SHA256: de99e268034722b6030dbb66efda4ef1a54ba4790cb7302aae078271ffb9d956
- Version 5.51.7 - PSS Integrity checksum: SHA256: f771c48fae697afdf691dee49b12d00f6579db601543b04c57533adda78b2ba1
- Version 5.51.6.2 - PSS Integrity checksum: SHA256: 6207cda41149fb9571e1153342d1244d6a0af4d341e1534c61010ea097f7a85c
- Version 5.51.6 - PSS Integrity checksum: SHA256: 5f0c85a073ccf3248e781b974a8c81a39f7a59de4b3ae6bf4e2e5d322fa7adbd
- Version 5.51.5.2 - PSS Integrity checksum: SHA256: 29610d089888e8f8dd3f8c5dfeecfcede02c711dddb0687ab51d21de5867c451
- Version 5.51.5.1 - PSS Integrity checksum: SHA256: 857fdfebc08d56d49074307b01171ee871c8f170603b6630f4cb8900dc049f84
- Version 5.51.5 - PSS Integrity checksum: SHA256: 2d6b555317994e4bf57370c23185707b143b6f8952eca2db20c74a4d46f97e66
- Version 5.50.4.9 - PSS Integrity checksum: SHA256: e0f3f543974941a295fd31f9f1b0b8438069787c79acbe3f5339f55eb749c373
- Version 5.50.4.8 - PSS Integrity checksum: SHA256: 32043e43d3dd3d3990ec91fe70e5c886a71cf6e335ac9454f556a0916338ae71
- Version 5.50.4.6 - PSS Integrity checksum: SHA256: 90f91c2e962156bc5ec7bd6b8cf9da07d557dc806b6a85ef6b2892c2b7179caf
- Version 5.50.4.3 - PSS Integrity checksum: SHA256: 657362c1e75726433bc53c173653bbdfcffb6a8117e1f92c4aea87d11afcefd3
- Version 5.50.4 - PSS Integrity checksum: SHA256: 4074f2c12daaa645b883692dfb62fee504bd2af892a35410398eeb8cec7b537f
- Version 5.50.2 - PSS Integrity checksum: SHA256: c4ad4e895d1b19d6c00c26726917b0e140b70d0c2f7c0bb5fc8dbd478be02ada
- Version 5.20.3 - PSS Integrity checksum: SHA256: a7f9875e1f30cfb2dc482e30d418e6e6714e0a0fac88f17b66902a2dfd0c6e04
- Version 5.20.2 - PSS Integrity checksum: SHA256: 82f09db5b64d96b22a40b3826436e38474b5f5ef6cf68a98d25258d47bf579cc
- Version 5.20.1 - PSS Integrity checksum: SHA256: 9bc20a7e16d61d222b854bdc70c80e803ba8b87176e9a18fc0d46cee91d6e2be
- Version 5.01.1 - PSS Integrity checksum: SHA256: c1ad3e3cb89b043a548b992f7b290ee71d89f1653e4242052abfe0e03a42a834
- Version 5.01 - PSS Integrity checksum: SHA256: 037758a55d531574424ad82fe52e3fe03670efca2b96488f2a06ac168b45f58b
Documentation
-
Datasheet
-
AXIS Q7401 Video Encoder(pdf) 857.05 KB
-
-
Manuals
-
AXIS Q7401 - User Manual(pdf) 1.5 MB
-
-
Dimensions
-
AXIS Q7401 Video Encoder(pdf) 285.4 KB
-
-
Product comparison tables
-
Product Comparison Tables - Q4 2024(pdf) 11.64 MB
-
Product Comparison Tables APAC - Q3 2024(pdf) 12.09 MB
-
Product Comparison Tables APAC - Q4 2024(pdf) 12.43 MB
-
-
Declaration and statement
-
AXIS Q7401 Video Encoder - MTBF statement(pdf) 135.9 KB
-
AXIS Q7401 Video Encoder – Declaration of Conformity(pdf) 45.19 KB
-
Discontinuation Statements for AXIS Q7401 Network Video Encoder(pdf) 88.92 KB
-
